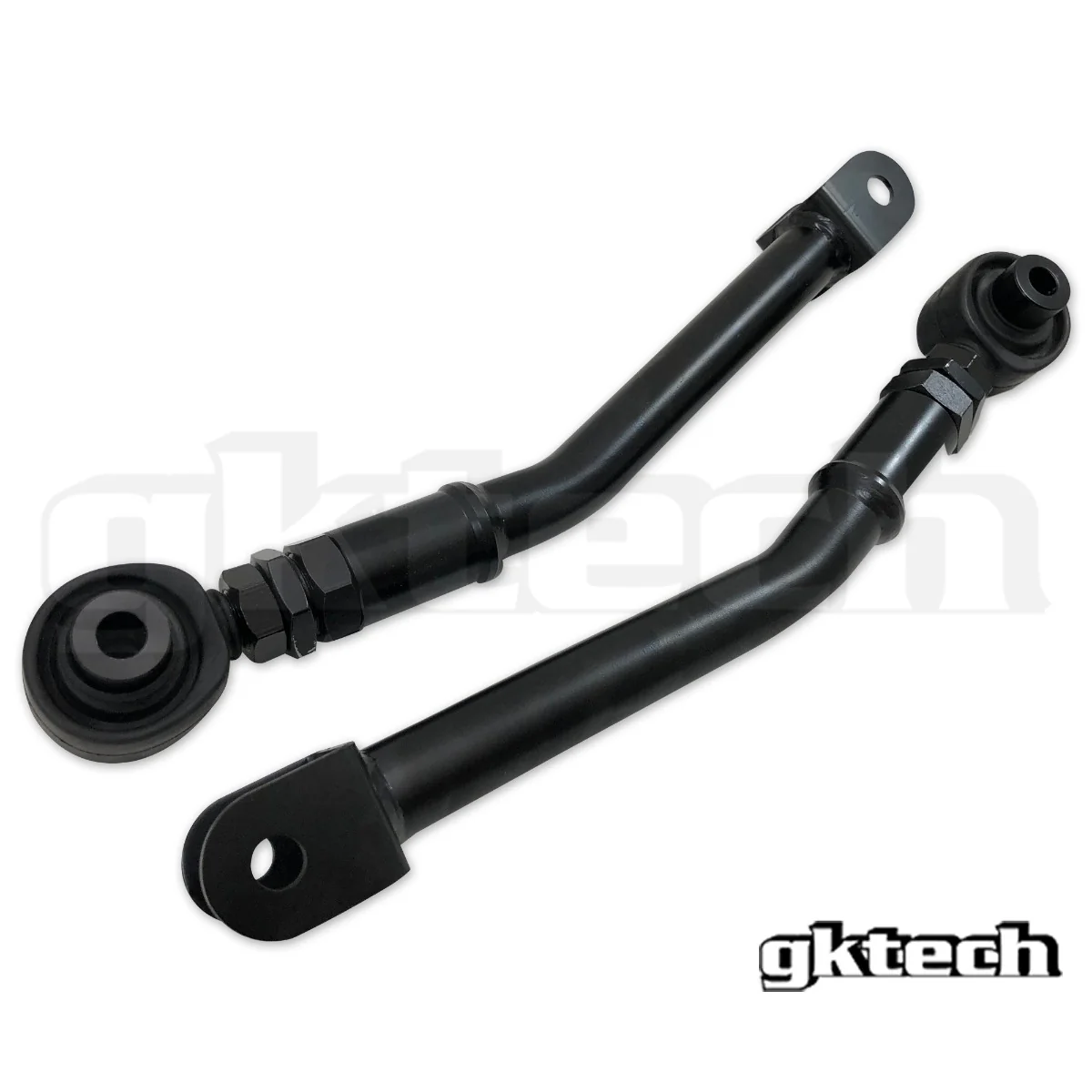

S Chassis Suspension arm package (10% combo discount)
This listing is for the 4 main adjustable arms; caster, camber, toe and traction and as a package deal we're offer an additional 10% off our listed price for the items sold on their own. The new V4 GKTECH suspension arms are unlike any other suspension arms on the market and they're manufactured to a standard not made available to the average motorsport enthusiast:
CAD designed, FEA tested, CNC machined ends, CNC mandrel bent arms (camber arms, toe arms and LCA's), CNC tube notched (camber and LCA's) and TIG welded and to finish the arms off they're E-coated (aka electrophoresis coating) for rust prevention and we're exclusively using high quality 5/8" Teflon lined rod ends.
FRONT CASTER ARMS
Caster arms (aka tension rods) allow adjustment in vehicle castor to bring the wheels forward and increase steering response. In general, the more caster the better. Allowing sharper turn in and faster return to the straight position when letting go of the wheel. The GKTECH caster arms also have HEAPS of clearance for those that are looking for more wheel clearance at angle.
For more information;
S13/180SX/R32/A31/Z32 High clearance caster arms
S14/S15/R33 High clearance caster arms
REAR CAMBER ARMS
When you lower your car negative camber is introduced. This reduces the contact patch of your tyres and thus available traction. These camber arms allow for approximately -5/+7 degrees of camber adjustment.
For more information:
V4 - S/R/Z32 Rear camber arms (RUCA's)
REAR TOE ARMS
When you lower your car the rear toe is largely effected. This effects rear toe adjustment, and can cause the car to crabwalk, be unpredictable, unsafe and cause rapid tyre wear. Having adjustable rear toe arms will correct this issue.
Choice in rear toe arms is subframe specific, eg if you car is running an S13 subframe select S13 toe arms. If your car is running an S14 subframe then select S14 toe arms.
For more information
V4 - S13/180SX/R32/A31/Z32 Rear toe arms
V4 - S14/S15/R33/R34 Rear toe arms
REAR TRACTION RODS
Rear traction rods allow adjustment forward or backward of the rear knuckle assembly. They can be adjusted to eliminate bump steer, anti-squat and alter other rear suspension traction settings to improve suspension response.
For more information
V4 - S/R/Z32 Adjustable rear traction rods
This listing is for the 4 main adjustable arms; caster, camber, toe and traction and as a package deal we're offer an additional 10% off our listed price for the items sold on their own. The new V4 GKTECH suspension arms are unlike any other suspension arms on the market and they're manufactured to a standard not made available to the average motorsport enthusiast:
CAD designed, FEA tested, CNC machined ends, CNC mandrel bent arms (camber arms, toe arms and LCA's), CNC tube notched (camber and LCA's) and TIG welded and to finish the arms off they're E-coated (aka electrophoresis coating) for rust prevention and we're exclusively using high quality 5/8" Teflon lined rod ends.
FRONT CASTER ARMS
Caster arms (aka tension rods) allow adjustment in vehicle castor to bring the wheels forward and increase steering response. In general, the more caster the better. Allowing sharper turn in and faster return to the straight position when letting go of the wheel. The GKTECH caster arms also have HEAPS of clearance for those that are looking for more wheel clearance at angle.
For more information;
S13/180SX/R32/A31/Z32 High clearance caster arms
S14/S15/R33 High clearance caster arms
REAR CAMBER ARMS
When you lower your car negative camber is introduced. This reduces the contact patch of your tyres and thus available traction. These camber arms allow for approximately -5/+7 degrees of camber adjustment.
For more information:
V4 - S/R/Z32 Rear camber arms (RUCA's)
REAR TOE ARMS
When you lower your car the rear toe is largely effected. This effects rear toe adjustment, and can cause the car to crabwalk, be unpredictable, unsafe and cause rapid tyre wear. Having adjustable rear toe arms will correct this issue.
Choice in rear toe arms is subframe specific, eg if you car is running an S13 subframe select S13 toe arms. If your car is running an S14 subframe then select S14 toe arms.
For more information
V4 - S13/180SX/R32/A31/Z32 Rear toe arms
V4 - S14/S15/R33/R34 Rear toe arms
REAR TRACTION RODS
Rear traction rods allow adjustment forward or backward of the rear knuckle assembly. They can be adjusted to eliminate bump steer, anti-squat and alter other rear suspension traction settings to improve suspension response.
For more information
V4 - S/R/Z32 Adjustable rear traction rods
Original: $1,166.40
-70%$1,166.40
$349.92Description
This listing is for the 4 main adjustable arms; caster, camber, toe and traction and as a package deal we're offer an additional 10% off our listed price for the items sold on their own. The new V4 GKTECH suspension arms are unlike any other suspension arms on the market and they're manufactured to a standard not made available to the average motorsport enthusiast:
CAD designed, FEA tested, CNC machined ends, CNC mandrel bent arms (camber arms, toe arms and LCA's), CNC tube notched (camber and LCA's) and TIG welded and to finish the arms off they're E-coated (aka electrophoresis coating) for rust prevention and we're exclusively using high quality 5/8" Teflon lined rod ends.
FRONT CASTER ARMS
Caster arms (aka tension rods) allow adjustment in vehicle castor to bring the wheels forward and increase steering response. In general, the more caster the better. Allowing sharper turn in and faster return to the straight position when letting go of the wheel. The GKTECH caster arms also have HEAPS of clearance for those that are looking for more wheel clearance at angle.
For more information;
S13/180SX/R32/A31/Z32 High clearance caster arms
S14/S15/R33 High clearance caster arms
REAR CAMBER ARMS
When you lower your car negative camber is introduced. This reduces the contact patch of your tyres and thus available traction. These camber arms allow for approximately -5/+7 degrees of camber adjustment.
For more information:
V4 - S/R/Z32 Rear camber arms (RUCA's)
REAR TOE ARMS
When you lower your car the rear toe is largely effected. This effects rear toe adjustment, and can cause the car to crabwalk, be unpredictable, unsafe and cause rapid tyre wear. Having adjustable rear toe arms will correct this issue.
Choice in rear toe arms is subframe specific, eg if you car is running an S13 subframe select S13 toe arms. If your car is running an S14 subframe then select S14 toe arms.
For more information
V4 - S13/180SX/R32/A31/Z32 Rear toe arms
V4 - S14/S15/R33/R34 Rear toe arms
REAR TRACTION RODS
Rear traction rods allow adjustment forward or backward of the rear knuckle assembly. They can be adjusted to eliminate bump steer, anti-squat and alter other rear suspension traction settings to improve suspension response.
For more information
V4 - S/R/Z32 Adjustable rear traction rods
