XE10-INLN/XE10-INL2/XE10-INL3 - Variant

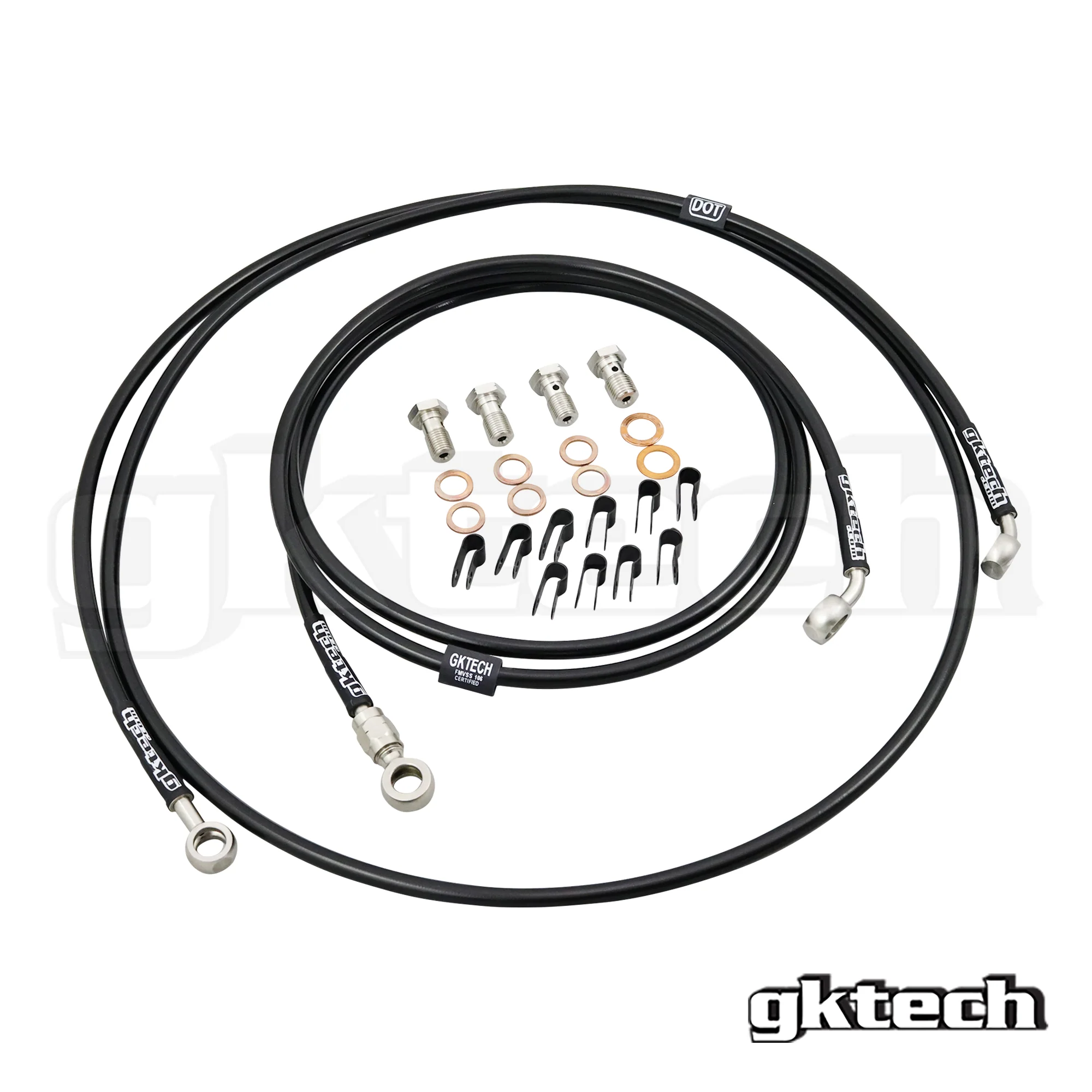

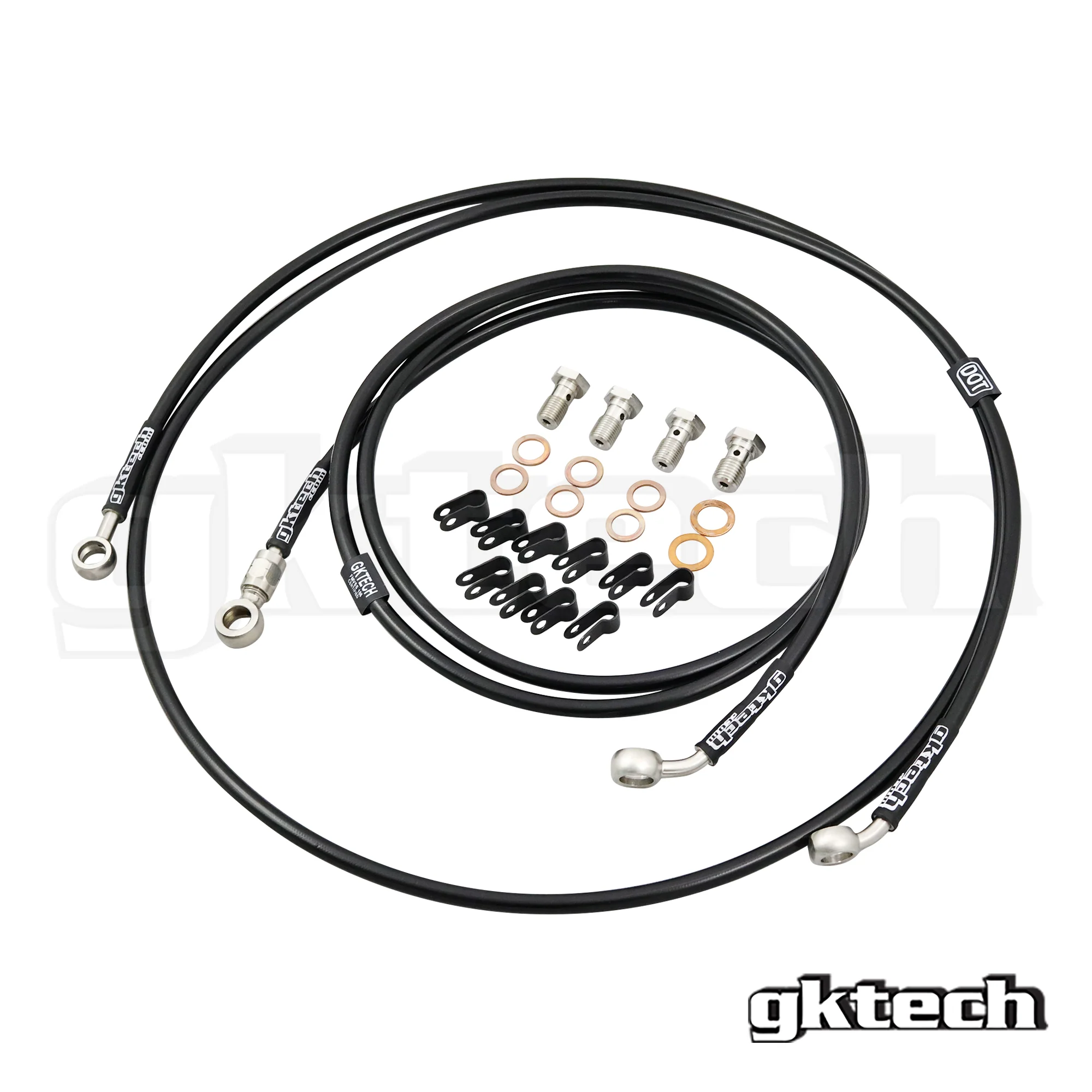

The GKTECH Lexus IS200/IS300 In-Line Hydraulic Handbrake Lines In-line braided brake line kit is designed to be used with your existing brake calipers and doesn't require any cutting or drilling as it passes through OEM firewall grommets!
These lines are to suit a master cylinder located under the radio, with a 3/8-24 threaded outlet and a 7/16-20 outlet like used with the Flux in-line master cylinders that we sell.

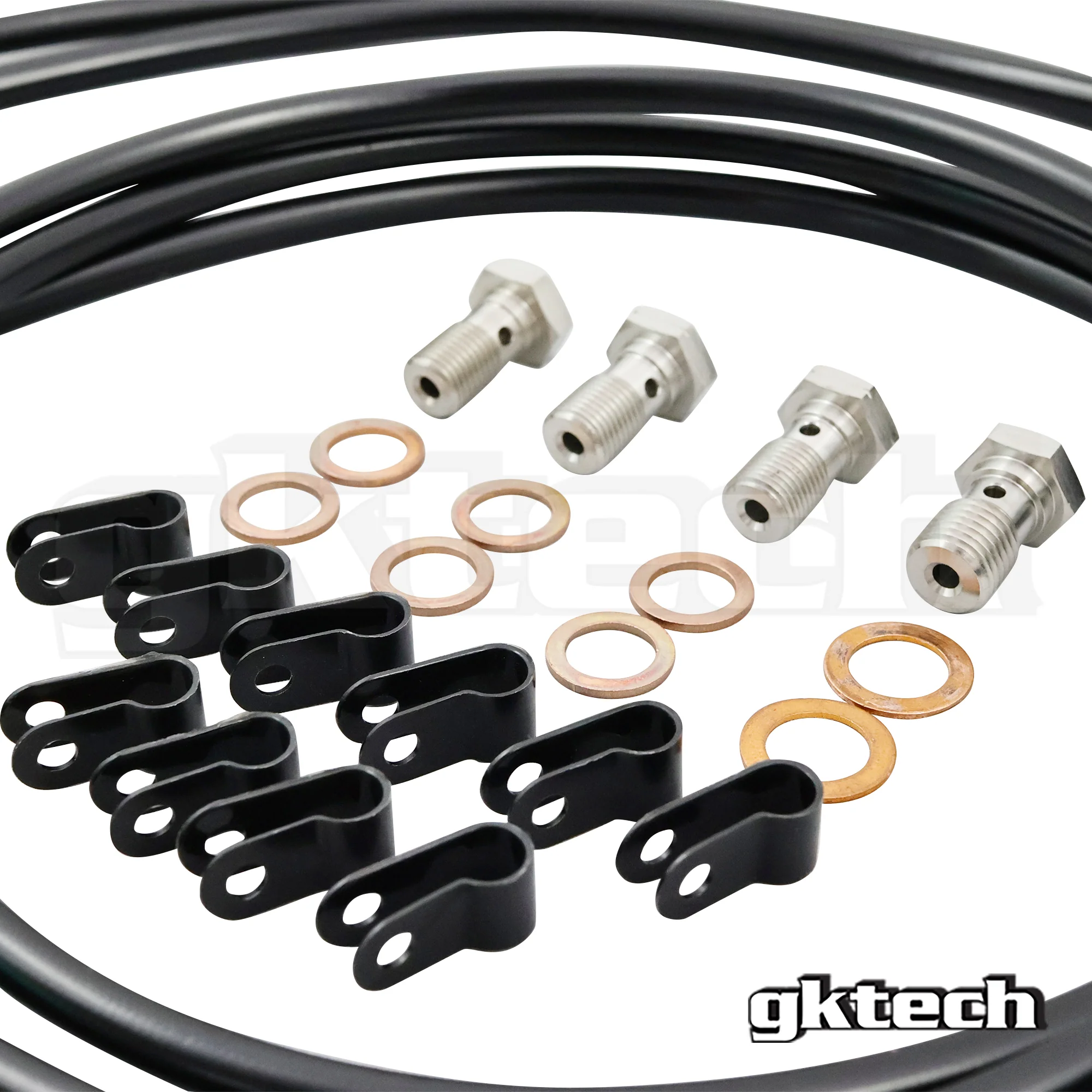

The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines ADR approved in Australia and they are marked as such on the brake line assemblies.
The FMVSS106 testing procedure that the lines have been tested against includes the following tests:
- 370lbs pull test
- 35 hour whip test
- 7000psi burst test
- -45degC to 146degC temperature tests
- 24 hour salt corrosion resistance test
NOTE #1: ABS will no longer work (kit requires removal of fuse 20 (ABS2, 7.5A) & relay E (ABS MTR) in engine fuse box)
NOTE #2: There are two different types of ABS units, please refer to the picture below to determine which kit you need.
The GKTECH Lexus IS200/IS300 In-Line Hydraulic Handbrake Lines In-line braided brake line kit is designed to be used with your existing brake calipers and doesn't require any cutting or drilling as it passes through OEM firewall grommets!
These lines are to suit a master cylinder located under the radio, with a 3/8-24 threaded outlet and a 7/16-20 outlet like used with the Flux in-line master cylinders that we sell.
The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines ADR approved in Australia and they are marked as such on the brake line assemblies.
The FMVSS106 testing procedure that the lines have been tested against includes the following tests:
- 370lbs pull test
- 35 hour whip test
- 7000psi burst test
- -45degC to 146degC temperature tests
- 24 hour salt corrosion resistance test
NOTE #1: ABS will no longer work (kit requires removal of fuse 20 (ABS2, 7.5A) & relay E (ABS MTR) in engine fuse box)
NOTE #2: There are two different types of ABS units, please refer to the picture below to determine which kit you need.
Original: $168.00
-70%$168.00
$50.40Description
The GKTECH Lexus IS200/IS300 In-Line Hydraulic Handbrake Lines In-line braided brake line kit is designed to be used with your existing brake calipers and doesn't require any cutting or drilling as it passes through OEM firewall grommets!
These lines are to suit a master cylinder located under the radio, with a 3/8-24 threaded outlet and a 7/16-20 outlet like used with the Flux in-line master cylinders that we sell.
The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines ADR approved in Australia and they are marked as such on the brake line assemblies.
The FMVSS106 testing procedure that the lines have been tested against includes the following tests:
- 370lbs pull test
- 35 hour whip test
- 7000psi burst test
- -45degC to 146degC temperature tests
- 24 hour salt corrosion resistance test
NOTE #1: ABS will no longer work (kit requires removal of fuse 20 (ABS2, 7.5A) & relay E (ABS MTR) in engine fuse box)
NOTE #2: There are two different types of ABS units, please refer to the picture below to determine which kit you need.
